| 型号规格 Model specification | BYCNC-4000G |
|---|---|
| 输入电源 Input source | 380土10%V AC 50HZ/60HZ 220W |
| 切割方式 Cutting method | 数控火焰/等离子两用 Numerical control flamc I plasma |
| 切割范围(XxY)(mm) Effective cutting range (X * Y)(mm) | 3200x 10500 |
| 导轨长x宽(mm) Rail length x width (mm) | 12000x4000 |
| 切割速度( mm/min) Cutting speed (mm/min) | 0-4000 峰值(Maximum) 6000 |
| 等离子切割厚度( mm) Plasma cutting thickness (mm) | 0-40mm |
| 火焰切割厚度( mm ) Flame cutting thickness (mm) | 6-100 |
| 运行精度(mm/m) Operating accuracy (mm/m) | 土0.2mm |
| 调高形式 High profile | 自动调高 Automatic height adjustment |
| 适用燃气类型 Applicable gas type | 氧气+乙炔/氧气+丙烷 Oxygen + acetylene/oxygen + propane |
| 燃气压力( Mpa) Gas pressure (Mpa) | 峰值(Maximum)0.8Mpa |
| 氧气压力( Mpa) Oxygen pressure (Mpa) | 峰值(Maximum)0.7Mpa |

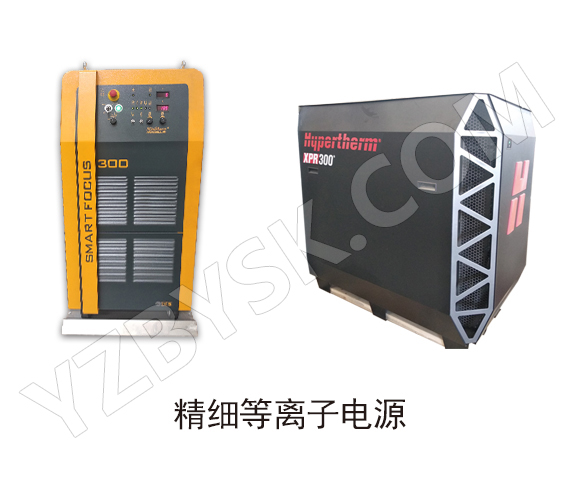

| 等离子切割选配 Plasma cutting selection | 等离子电源(Plasma power) 德国凯贝尔、美国海宝 |
| 本产品在用户无特殊要求时,标配乙炔割嘴 This product has no special requirements ofthe user, the standard acetylene cutting nozzle | |
